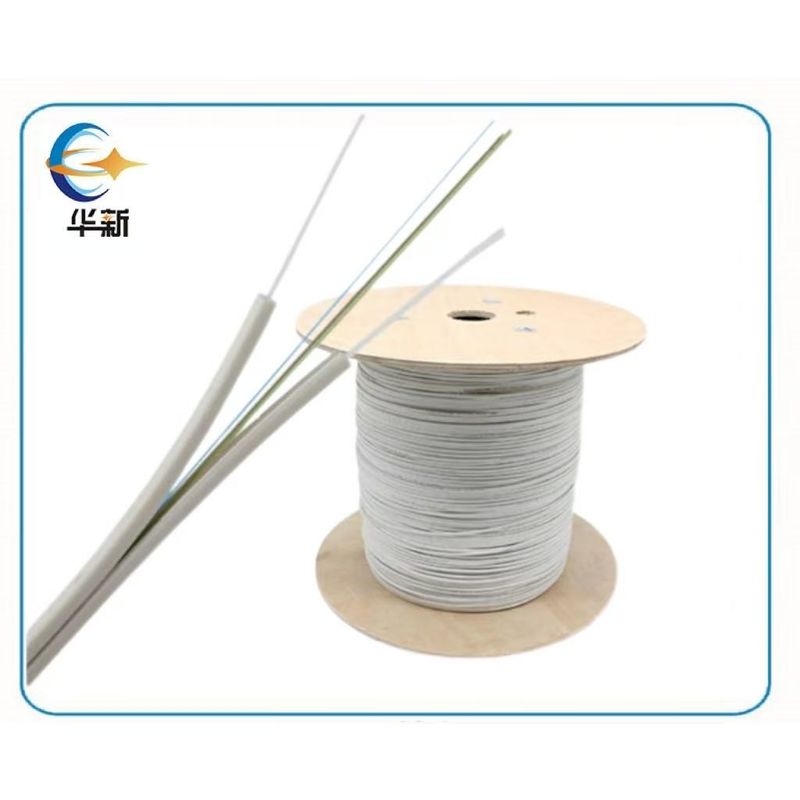

GJXH-1 G657A1 Drop Cable serve as the backbone of modern communication networks, transmitting data via light signals. These signals travel through various modes, each defining the path the light beam takes within the fiber.
Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Technical Specification
|
Cable type
|
GJXH-2B6
|
|
|
|
|
|
Cable specification
|
3.0*2.0
|
1 |
2 |
4 |
8 |
|
Fiber color
|
Nature/blue
|
Steel wireFRP |
Steel wireFRP |
Steel wireFRP |
Steel wireFRP |
|
Fiber type
|
9/125
|
Lszh black/white |
Lszh black |
Lszh black |
Lszh black |
|
Sheath color
|
black
|
2.0*3.0 |
2.0*3.0 |
2.0*3.0 |
2.0*3.5 |
|
Sheath material
|
LSZH
|
18 |
18 |
18 |
18 |
|
Cable dimension (mm)
|
3.0(±0.1)*2.0(±0.1)
|
400 |
400 |
400 |
400 |
|
Cable weight(Kg/Km)
|
10.9
|
50-60 |
|
Min. bending radius(rip off the messenger wire) mm
|
B6a:15(static) 30(dynamic)
B6a:10(static) 25(dynamic)
|
600 (Short term) / 400(Long term) |
|
Attenuation dB/Km
|
≤0.4 at 1310nm, ≤0.3 at 1550nm
|
At full load 20 x Cable OD (including poles)At no load 15 x Cable OD |
|
Short tension (N)
|
200
|
Installation -0 -> +50 Operation -20 -> +70 |
|
Short crush (N/100m)
|
2200
|
|
|
|
|
|
Operation temperature
|
-5~+50
Relative to 20°C, fiber addition attenuation ≤0.2dB/Km
|
|
|
|
|
